Balanset-1A
Professional portable balancing device for field and workshop use. Two-plane dynamic balancing without disassembly.
1975,00 €
In stock
Ask an engineer
Ships within 48h
Tracked DHL shipping
2-year warranty
Engineer support included
Channels
2
Frequency range
1-1000 Hz
RPM range
100-100,000
Use case
Field balancing
Everything needed to start balancing.
Kit contents are a purchase confidence block, not a small paragraph hidden in the description.

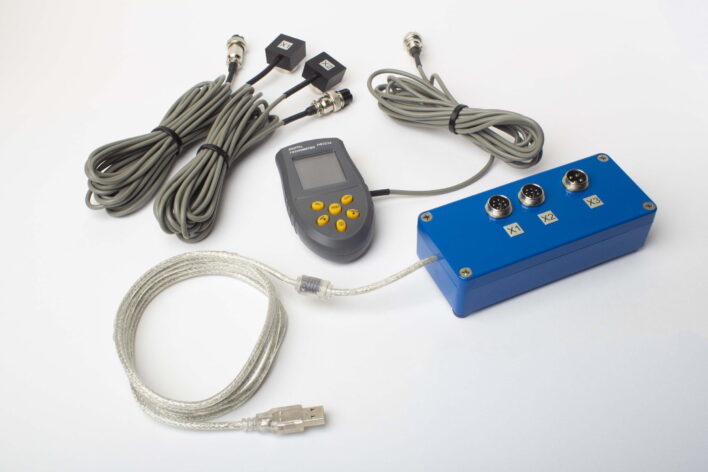

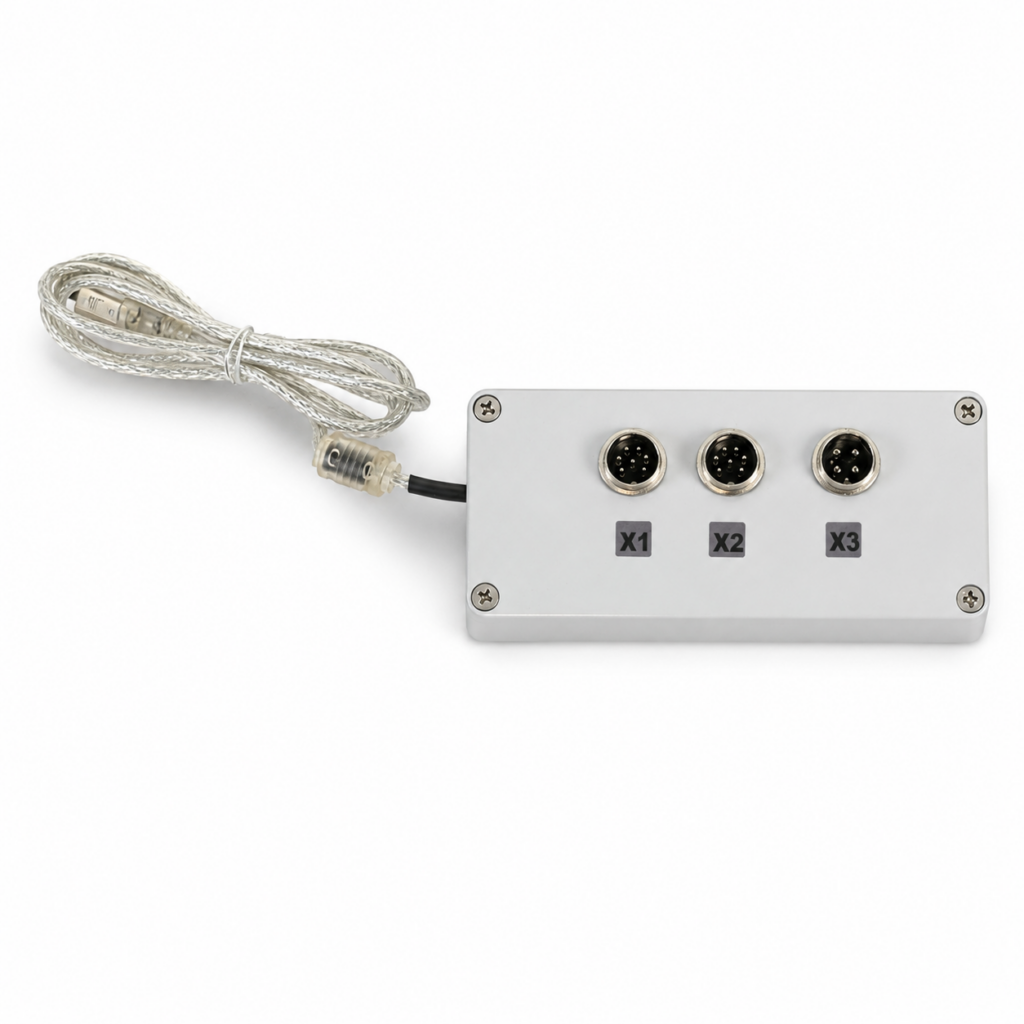

Measurement unit
Dual-channel Balanset-1A device.
Vibration sensors
Two accelerometers for measurement.
Laser tachometer
Phase sensor for RPM counting.

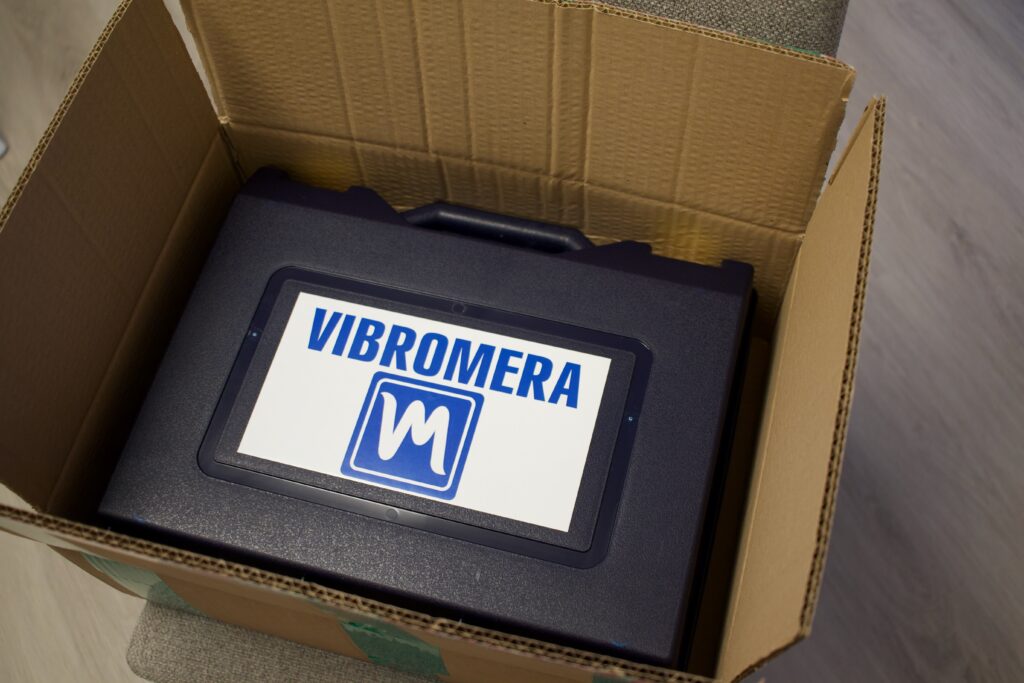

Software and case
USB software plus rugged carrying case.
Balanset-1A — Portable Rotor Balancer & Vibration Analyzer
The Balanset-1A is a professional portable device for dynamic balancing of rotors in their own bearings — without disassembly. It combines a dual-channel vibration analyzer with intelligent balancing software.
Key Features
- Two-plane dynamic balancing — corrects both static and dynamic imbalance
- Works on operating machines — no need to remove the rotor
- Automatic calculations — software determines correction weight mass and position
- Universal application — fans, pumps, crushers, turbines, shafts, and more
How It Works
- Attach vibration sensors and laser tachometer to the equipment
- Run the rotor and take an initial measurement
- Install a trial weight as directed by the software
- The software calculates the exact correction — install and verify

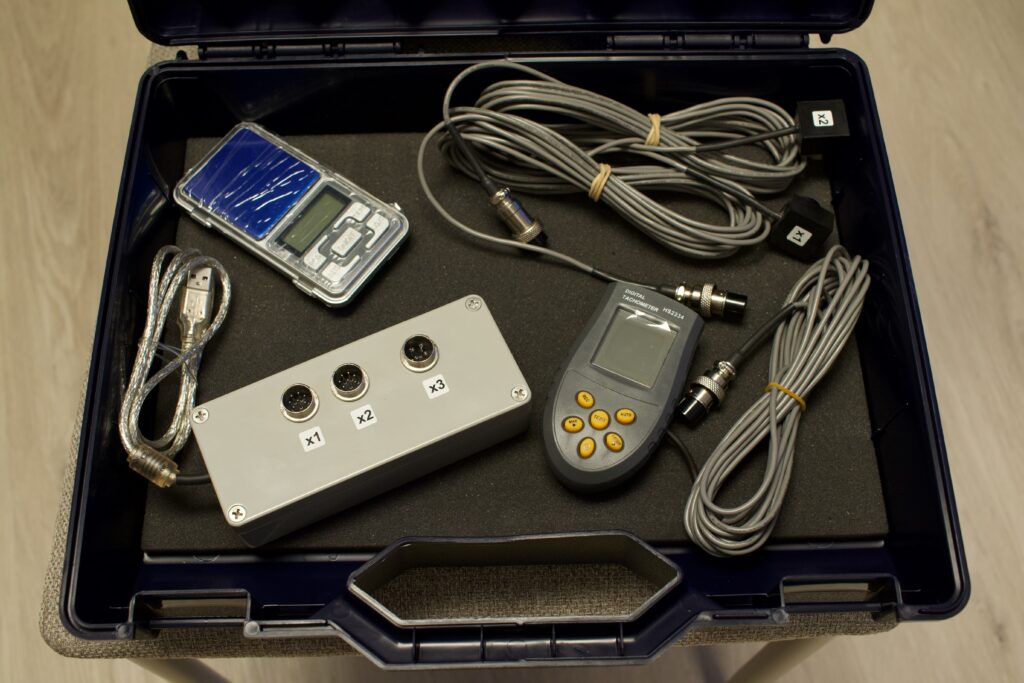

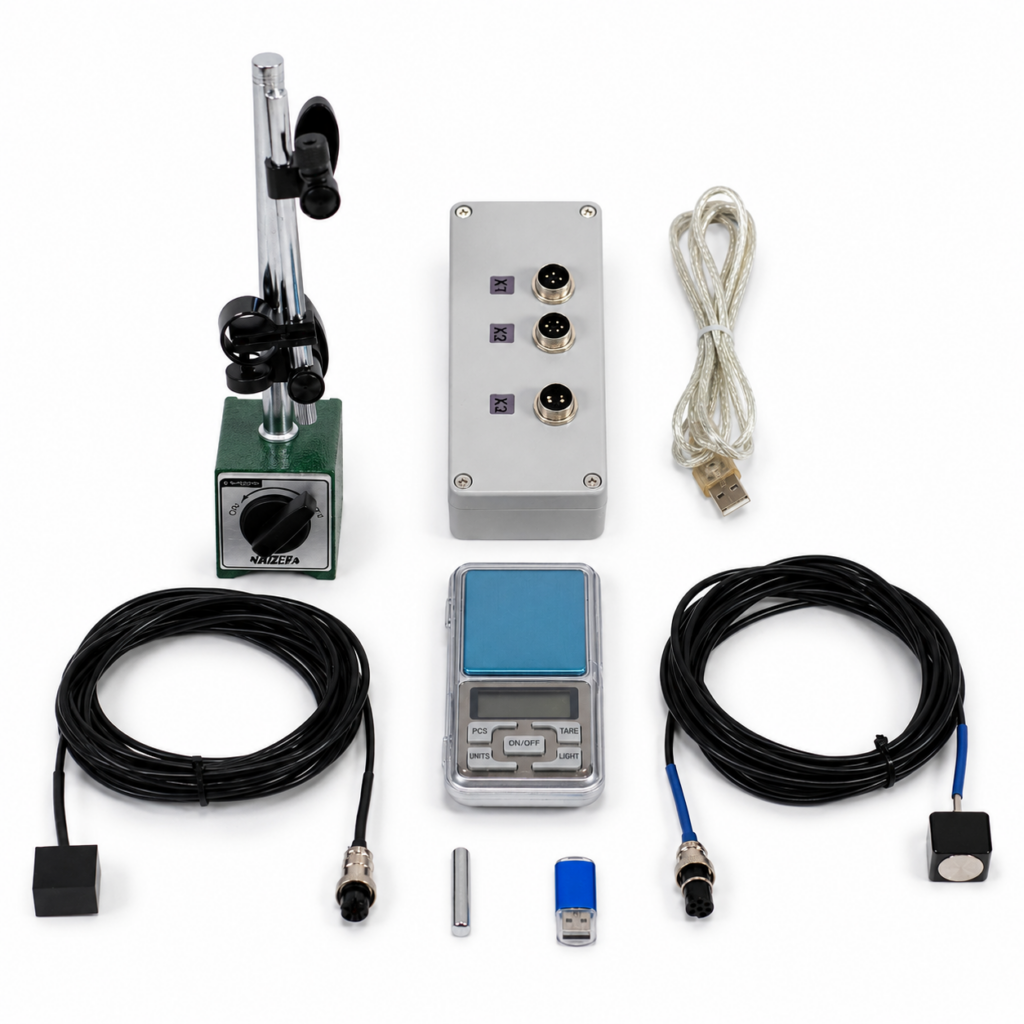

What’s in the Kit
The standard Balanset-1A kit includes everything you need to start balancing immediately: measurement unit, sensors, tachometer, scales, software, and a rugged carrying case.
